A 16x16 free standing deck on 16 pier blocks, not attached to your house: a big patio deck you can build with a circular saw, a drill and a helper.
Free standing deck plans PDF for a 16x16 floating deck (256 sq ft) on 16 pier blocks, with a three-riser stair: dimensioned drawings, a lettered cut list, numbered steps with one drawing each and a computed materials list. Joists and beams are checked at 85 percent or less of the allowed span.
Who it is for. Home builders comfortable with a circular saw, a drill and a level, with a helper for the beams and the concrete, who want a big patio deck without attaching anything to the house, with a shopping list for the lumberyard.
What is included
- Easy to follow and thorough: every cut has a letter, each of the ten steps has its own drawing, and there is a cut list and a materials and shopping list

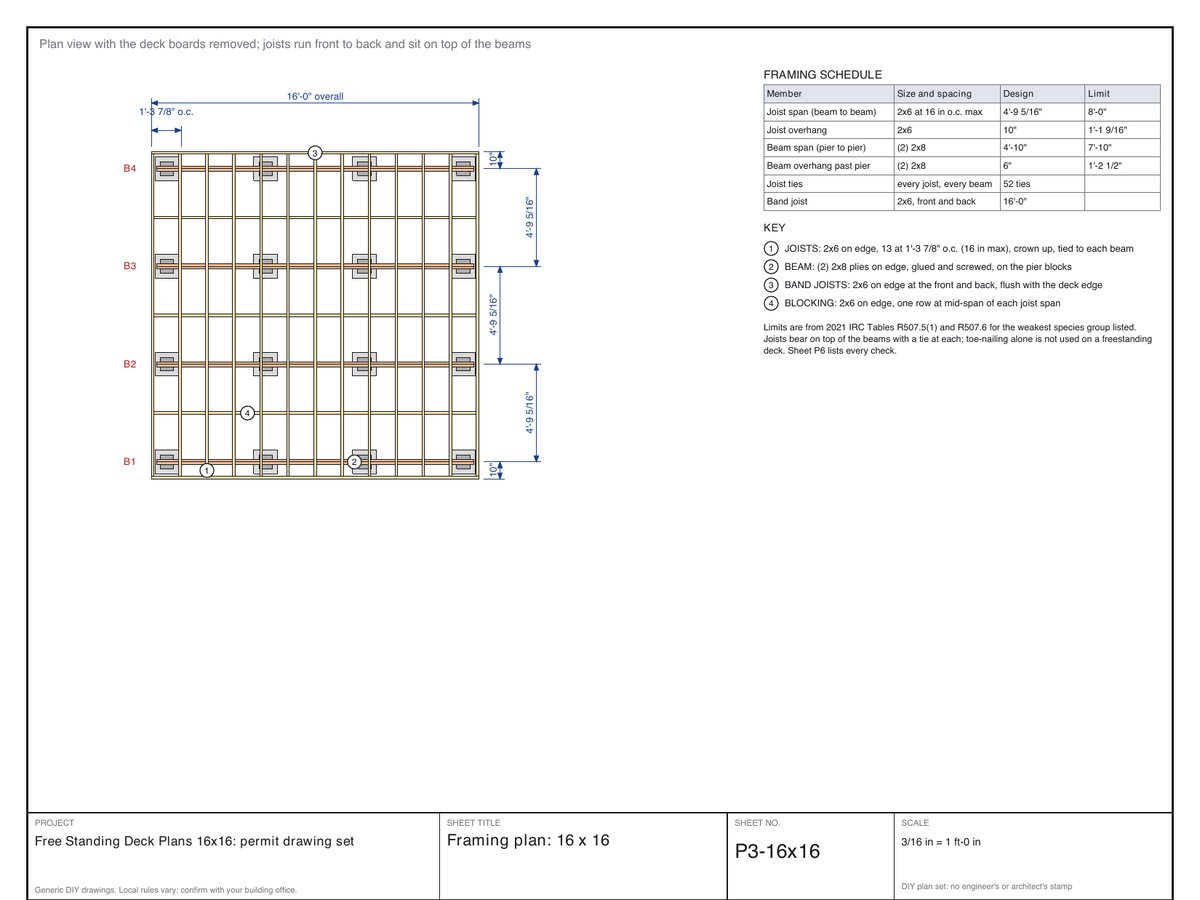

- Permit drawing set included, ready to adapt for your permit application; some building departments require stamped drawings. It has a site plan template, footing plan, framing plan, elevations, section and details, with a code reference table and a materials schedule. At 256 sq ft this deck is over the usual 200 sq ft limit, so expect to need a permit.
- CAD files: a SketchUp-ready .dae 3D model plus DXF drawings (open them in AutoCAD, LibreCAD or FreeCAD), so you can change a size or hand the drawings to a drafter
- A printable PDF (US letter, 8.5 x 11 in) with dimensioned drawings, the cut list and the materials list
- 1 editable spreadsheet (.xlsx) with board counts, a materials cost calculator (type your local prices) and a pier load check
- The worksheets again as printable web pages (zipped), so you can reprint single pages any time
Buy now, instant download $5.99
One-time payment, secure checkout by Stripe. You go straight to your download page after you pay.
Buy now, instant download $5.99
