An oscillating spindle sander is the fastest way to turn a rough bandsaw or jigsaw curve into a smooth, fair edge. The spinning drum moves up and down as it turns, which spreads sandpaper wear and leaves a cleaner, burn-free finish. The right one comes down to three things: the spindle range (which drum diameters it accepts), the table (cast-iron and tilting vs. lighter stamped tops), and whether you need a benchtop or floor machine. Below are our top picks for 2026, followed by a buying guide. For flat-surface work see our best random orbital sanders, and for thicknessing panels see our best drum sanders guide.
Best Grizzly benchtop: the Grizzly G0739 1/2 HP with a cast-iron table. Best floor model: the Grizzly G1071Z 1 HP variable-speed. Best budget: the WEN 6510T 3.5-amp benchtop. Best cast-iron benchtop from Amazon: the Triton TSPS450. Best belt-plus-spindle combo: the RIDGID EB4424. Match the machine to your largest common workpiece and confirm the included drum sizes cover your tightest curves.
Our Top Oscillating Spindle Sander Picks
Specs and pricing vary by production run; treat prices as planning estimates and tap any button for current pricing.
Grizzly G0739 1/2 HP Benchtop Oscillating Spindle Sander
1/2 HP, benchtop, cast-iron table
Shop at Grizzly.com →

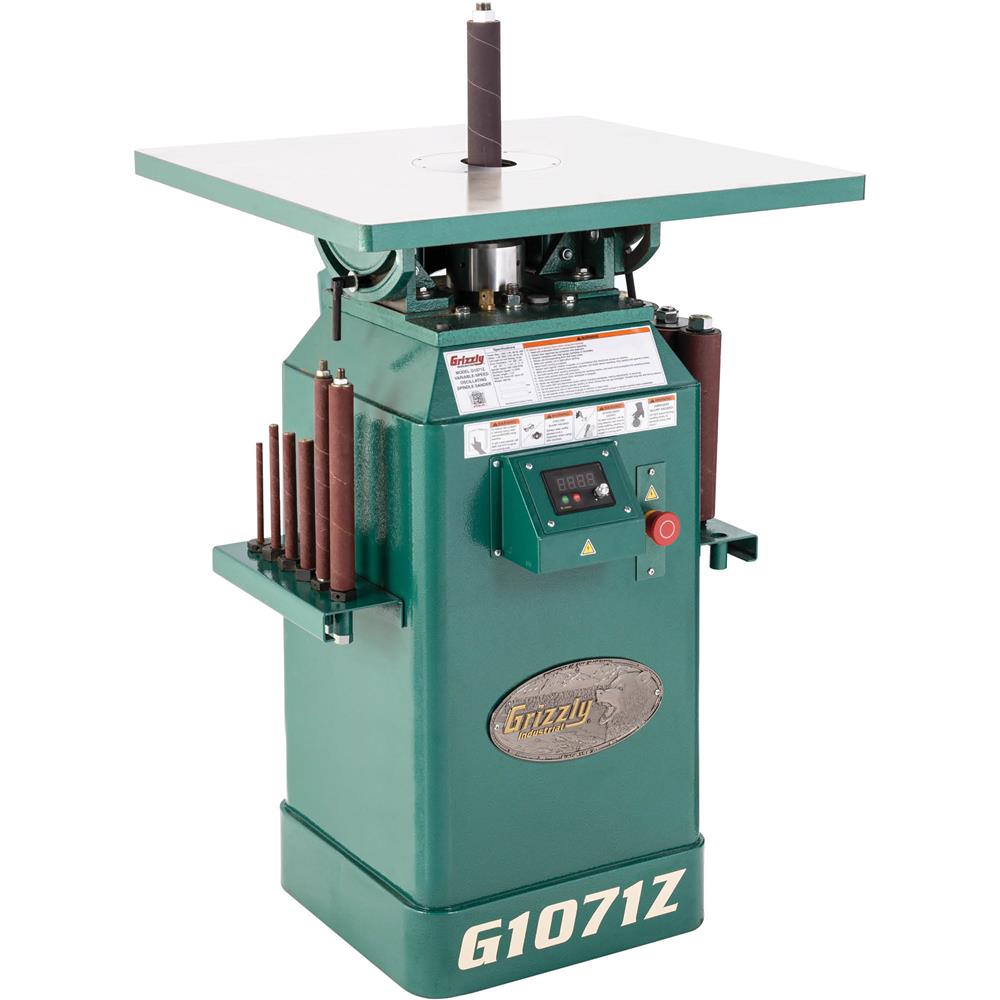

Grizzly G1071Z 1 HP Variable-Speed Oscillating Spindle Sander
1 HP, variable speed, floor model
Shop at Grizzly.com →
WEN 6510T 3.5 Amp Oscillating Spindle Sander, Black
A 3.5-amp benchtop oscillating spindle sander in black.
Triton TSPS450 3.5Amp Cast Iron Top Oscillating Spindle Sander, Orange
A 3.5-amp benchtop oscillating spindle sander with a cast-iron top.
Ridgid EB4424 Sander, Oscillating/Edge Belt
A combination oscillating spindle and edge belt sander in one machine.
Oscillating Spindle Sanders Compared
| Model | Type | Approx. Price | Best For |
|---|---|---|---|
| Grizzly G0739 | Benchtop, 1/2 HP | Check Grizzly | Best Grizzly Benchtop |
| Grizzly G1071Z | Floor, 1 HP variable-speed | Check Grizzly | Best Floor Model |
| WEN 6510T | Benchtop, 3.5 A | Around $122 | Best Budget |
| Triton TSPS450 | Benchtop, cast-iron top | Around $354 | Best Cast-Iron Benchtop |
| RIDGID EB4424 | Spindle + edge belt combo | Around $294 | Best Belt+Spindle Combo |
Oscillating Spindle Sander Buying Guide
Spindle Sizes & Oscillation
The defining feature of this tool is the oscillating spindle: the drum spins and simultaneously strokes up and down. That vertical travel spreads sanding-sleeve wear over the full height of the drum and clears dust, so sleeves last longer and edges come out smoother and burn-free. Machines ship with a set of rubber drums and matching sleeves, commonly from about 1/2 inch up to 2 inches in diameter, plus the throat plates and washers for each. Smaller drums reach tight inside curves; wider drums handle gentle sweeps. Check the included-drum list against the radii you sand most.
Table Tilt & Size
The table supports the workpiece, so flatness and size matter. A cast-iron table stays flat, adds mass that damps vibration, and holds the part steady for consistent edges. Many cast-iron tops also tilt, which lets you sand beveled or angled edges to a set degree. A larger table supports longer or heavier stock without tipping. Lighter stamped or aluminum tables cost less and are fine for occasional hobby use, but a flat, tilting cast-iron top is the mark of a more precise machine.
Benchtop vs. Floor
Benchtop spindle sanders are compact, less expensive, and clamp or bolt to a bench, which suits small to medium parts and shops that are tight on space. Floor models, such as a 1 HP variable-speed machine, bring more power, a bigger table, and continuous-duty capability for larger workpieces or production sanding. If you only smooth the occasional curve, a benchtop unit is plenty; if spindle sanding is a daily task, a floor machine earns its footprint.
Sanding Curved Edges Next?
Pair your spindle sander with the right belt-and-disc machine for flats and miters. See our full belt & disc sander guide.
